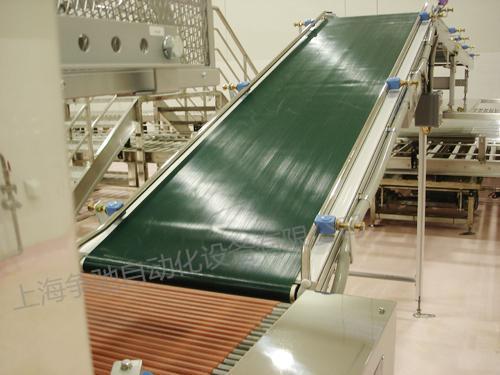

Climbing belt conveyor
Article source：http://www.money568.cn Release time：2016-02-22 14:56 Browse times：
Climbing belt conveyor using conveyor belt of continuous or intermittent movement of the following items or 500kg powder, a single item. Climbing type belt conveyor used in the high and low level of transport, can be completed in a continuous conveyor, can be smoothed with the roller conveyor or chain conveyor.
Conveyor belt material are: canvas belt (or nylon belt), plastic belt, anti-static PVC belt, rubber belt (heavy objects with steel wire belt), metal mesh belt, etc..
Climbing belt conveyor angle of the best not more than 13 degrees, if more than 13 degrees to the belt surface to increase the block or belt to choose a friction with the grass belt. In the production of climbing belt machine usually in the waist on both sides of the belt machine increase the door bar or edges add fillet on the side of the side of the belt, to prevent the object in the process of conveying drop.
Climbing belt drive mode: motor speed reducer drive and electric drum drive mode.
Climbing belt machine specifications: effective width W100-1500 (mm) and single driving limit L10000-50000 (mm), carrying capacity 100kg/m max, conveying speed 0-60m/min, electric power 0.2KW, 0.4KW, 0.75KW, 1.1KW, 1.5 kW, 2.2kW, 3.7KW.
Mobile conveyor to transport bulk or packaged food and small particles of material conveying, loading and unloading, stacking and applicable in a variety of roles, and can be composed of multiple series or other mechanical joint supporting the use of. Can be used in the open pit and other venues.
