Turning Roller Conveyor

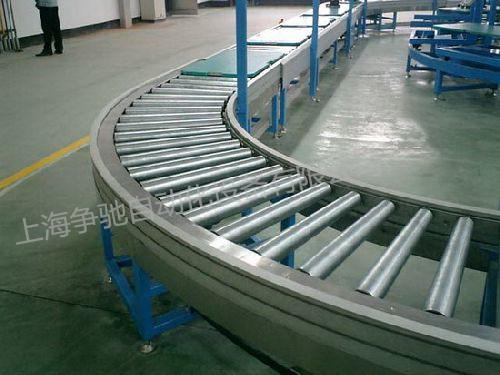

Turning roller conveyor
Article source：http://www.money568.cn Release time：2016-02-22 17:10 Browse times：
Technical parameters:
Can be used to connect the filter, drum lines and other transport equipment or the composition of the complex plane logistics delivery system and shunt confluence system, meet the technical requirements in many fields, is widely used.
The main material of the turning roller conveyor: carbon steel, stainless steel, aluminum, steel, PVC.
Turning roller conveyor drive are: speed motor drive, electric drive roller.
Application scope: widely used in electronics, beverage, food, packaging, machinery, electronics, light industry, tobacco, chemical, pharmaceutical, rubber and plastics, automobile and motorcycle, logistics and other industries.
Drive mode: sprocket, double chain, O - belt, plane friction transmission belt, synchronous belt, driving spool.
The design parameters of turning roller conveyor:
1, conveying object length, width and height;
2, each conveying unit weight;
In 3, at the bottom of the carrier material;
4, there are no special requirements on the working environment (such as temperature, humidity, chemical effect etc.);
5, belonging to the non powered conveyor or motor driven type.
6, turn the conveying angle (90 degrees turn, turn 45 degrees, 180 degrees turn).
To ensure that the goods can be transported smoothly, must at any point in time is at least three roller and conveying material to keep contact. The soft bag packaging and pallet conveying when necessary.
The conveying surface effective width (mm): 600/800/1000/ on-demand
The conveying surface height (mm): 750 (720-780 adjustable)
