Suspension Conveyor Line
Suspension chain conveyer
Article source：http://www.money568.cn Release time：2016-02-23 10:46 Browse times：
Product description:
The hanging chain conveyor chain is specially used for hanging conveyor or suspension conveyor chain conveyor. Suspension conveyor chain is widely used in machinery manufacturing, automotive, home appliances, auto car industry mass production products, parts in the process of spraying production line, plating production line, cleaning production line, assembly line, is also widely used in meat processing, light industry.

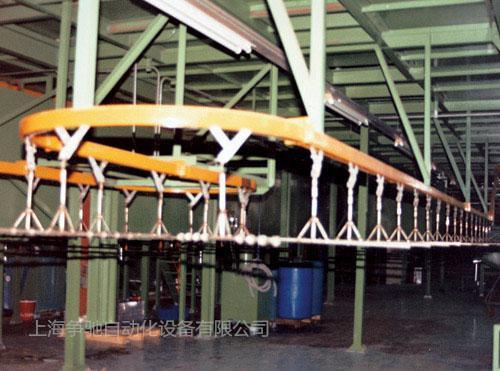

Overhead chain conveyor equipment is mainly composed of a rail, a roller, a hanging chain conveying chain, a sliding frame, a sling, traction power plant etc. parts.
The characteristics of suspended chain conveyor:
1, can be flexible to meet the change of production site needs
Hanging chain conveyor line can according to user's reasonable process route, between the inside of the workshop, with a floor of a different plant, different floors in the space fixed and closed route implemented into items of continuous conveying, can also through a longer route, around the obstacle, the piece according to preset line transported to a designated place, to achieve the purpose of handling objects of the production, transport distance 400-500m or longer.
2, in addition to material handling, but also can be used for assembly line
Suspended chain conveying equipment not only can be used in the workshop or workshop and workshop between goods handling, but also can complete the operation process in the process of handling, such as surface treatment processes (dipping, spraying, drying, heat preservation, cooling, assembly)
3, to facilitate the realization of automatic or semi-automatic production
4, can be arbitrarily arranged in the three-dimensional space, can play the role of the storage object in the air and ground saving site use.
5, speed adjustable, can be flexible to meet the needs of production.
6, transportation of materials can be pieces of goods, bulk materials can also be arranged in the container.
7, hanging chain conveyor equipment can make the workpiece continuously transported by high temperature oven, toxic gas, powder room, frozen zone artificial unsuitable area, complete production process of artificial difficult to operate to improve working conditions of workers, to ensure the safety of the purpose of.
In addition to the above advantages, suspension conveyor chain also has some disadvantages, the most obvious problem is when the system fails to transport across the board down to check, this will affect the entire production line of production.
