Turning Roller Conveyor

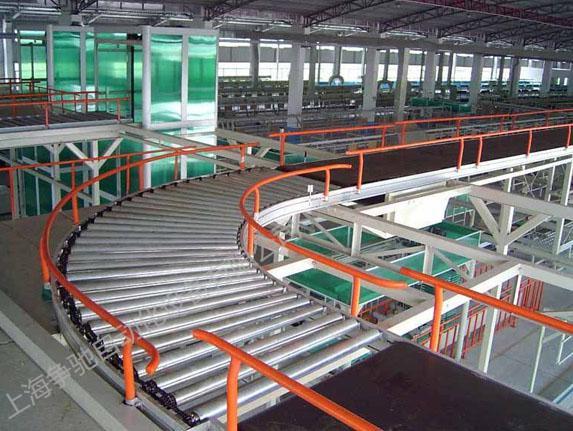

90 degrees turn roller conveyor line
Article source：http://www.money568.cn Release time：2016-02-22 17:03 Browse times：
Turning roller conveyor
Can be used to connect the filter, drum lines and other transport equipment or the composition of the complex plane logistics delivery system and shunt confluence system, meet the technical requirements in many fields, is widely used.
The main material of the turning roller conveyor: carbon steel, stainless steel, aluminum, steel, PVC.
Turning roller conveyor drive are: speed motor drive, electric drive roller.
Application scope: widely used in electronics, beverage, food, packaging, machinery, electronics, light industry, tobacco, chemical, pharmaceutical, rubber and plastics, automobile and motorcycle, logistics and other industries.
Drive mode: sprocket, double chain, O - belt, plane friction transmission belt, synchronous belt, driving spool.
The design parameters of turning roller conveyor:
1, conveying object length, width and height;
2, each conveying unit weight;
In 3, at the bottom of the carrier material;
4, there are no special requirements on the working environment (such as temperature, humidity, chemical effect etc.);
5, belonging to the non powered conveyor or motor driven type.
6, turn the conveying angle (90 degrees turn, turn 45 degrees, 180 degrees turn).
To ensure that the goods can be transported smoothly, must at any point in time is at least three roller and conveying material to keep contact. The soft bag packaging and pallet conveying when necessary.
Note:
1, the length of the roller of choice: different width of the goods to be elected for the width of the roller, the general use "delivery + 50mm".
2, the roller wall thickness and axial diameter selection: in accordance with the transmission weights assigned to the average contact roller, calculate the required bearing roller, so as to determine the drum wall thickness and diameter of shaft.
3, roller material and surface treatment: according to different transporting environment, determine the roller, the materials and surface treatment (galvanized carbon steel, stainless steel, black or plastic bag).
4, select roller installation method: according to the specific requirements of the overall conveyor, roller installation: spring is pressed into the type, inner tooth shaft type, the oblate tenon type, a pin hole type. For the tapered roller bend machine, the roller surface width and taper as the cargo size and turning radius and.
Conveying characteristics:
Easy to interface between the drum line, available multi drum lines and other transport equipment or the composition of the complex plane logistics delivery system, need to complete the process in many aspects. Stacking rollers can be used to achieve material accumulation conveyor. The roller conveyor has the advantages of simple structure, high reliability, convenient use and maintenance.
Selection points:
1. Drum materials are carbon steel galvanized, plastic bags, stainless steel, steel, steel and other, the selection should be according to the load uncertain material and drum type;
2 the food industry should choose full stainless steel body and stainless steel drum;
3 general conveyor roller top height is slightly lower than the height of the side of the fuselage, according to the need to set up a side baffle, baffle and guardrail.
